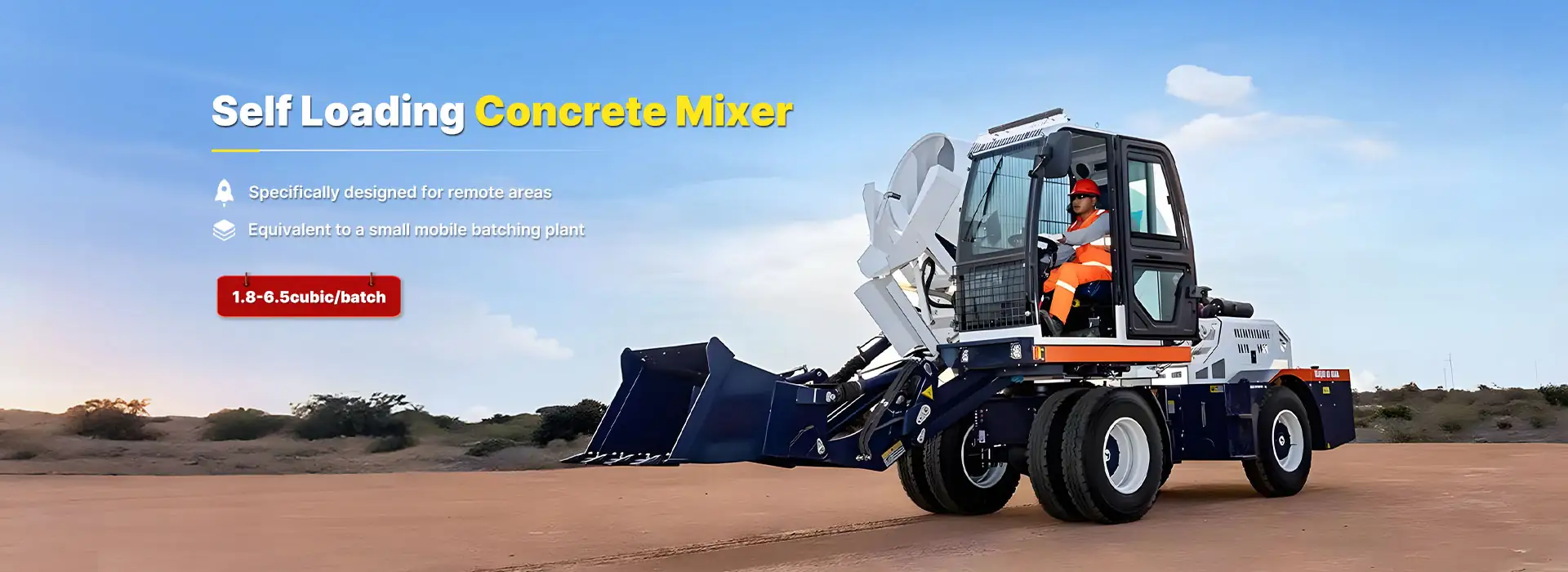

Aimix AS1.2-5.5 cubic meter self-loading concrete mixer can be seen as a smaller mobile concrete batching plant, which is more economic & can move around. It makes full use of the function of a concrete mixer truck and mixing station, which realizes automatic loading, metering, mixing and discharging of concrete. It greatly improves the working efficiency and reduces production time and cost. Our self loading mixer truck is especially suitable for horizontal projects: parking lots, warehouses, low-rise buildings, dams and other small and medium-sized individual projects. Here are our main self loading concrete mixer models:
Different Models Of Aimix Self-loading Concrete Mixers:
Discharge Capacity: 1200L
Concrete output: 4.8 m³/h
Engine Model:Yunnei 490 Turbo-Charged
Gear: 2 Forward 2 Back

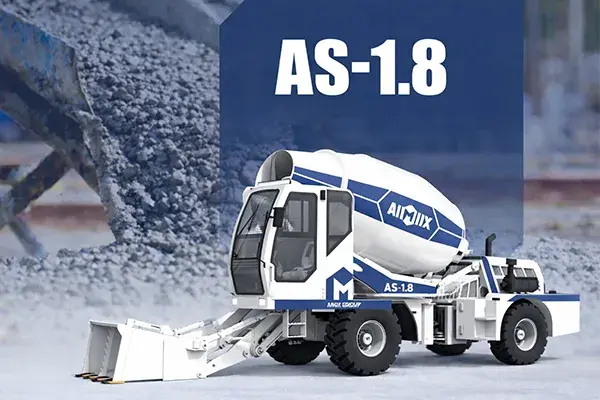

Discharge Capacity: 1800L
Concrete output: 7.2 m³/h
Engine Model:Yuchai 4102 Turbo-Charged
Gear: 2 Forward 2 Back

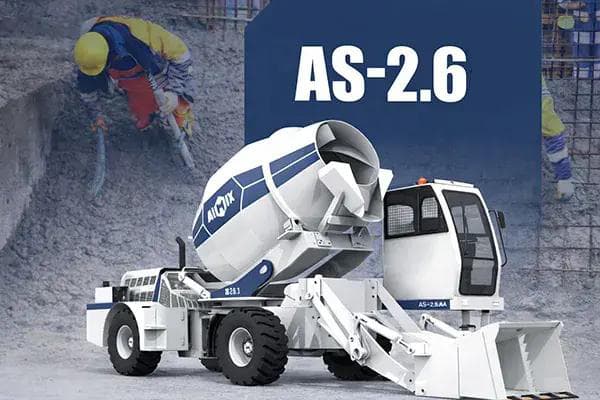

Discharge Capacity: 2600L
Concrete output: 10.4 m³/h
Engine Model:Yuchai 4102 Turbo-Charged
Gear: 4 Forward 4 Back

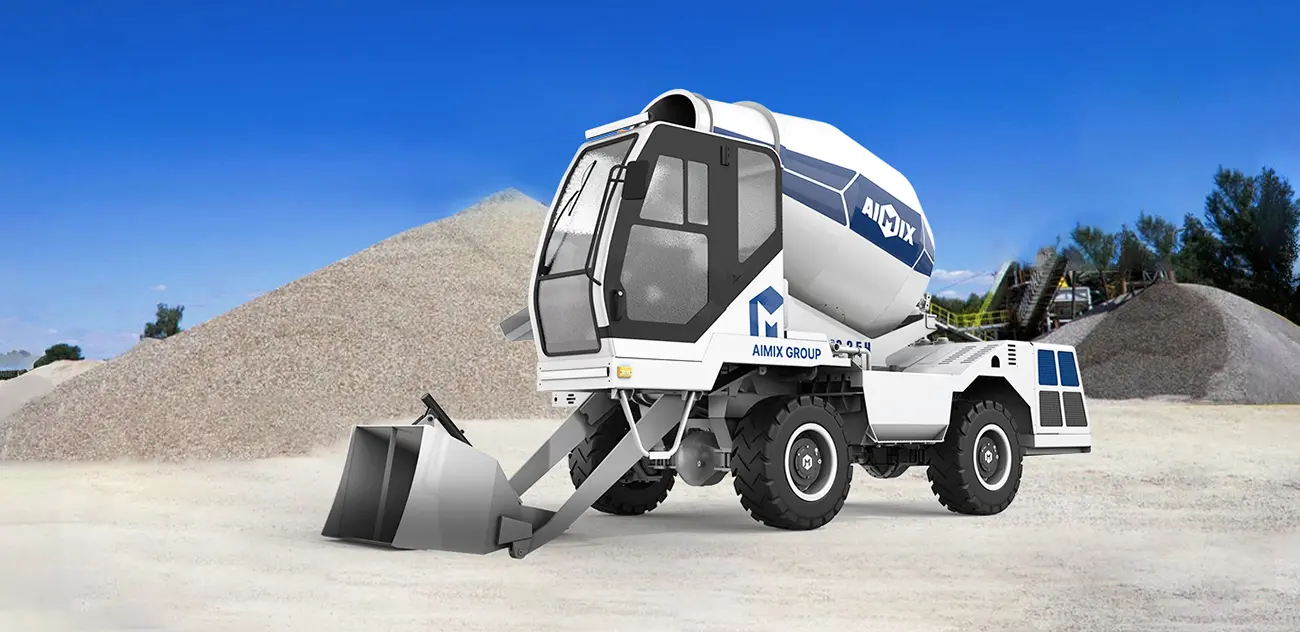

Discharge Capacity: 3500L
Concrete output: 14 m³/h
Rated Power:85 Kw
Gear: 2 Forward 2 Back, Front Wheels Steering
Discharge Capacity: 4000L
Concrete output: 16 m³/h
Rated Power:85 Kw
Gear: 2 Forward 2 Back, Front Wheels Steering

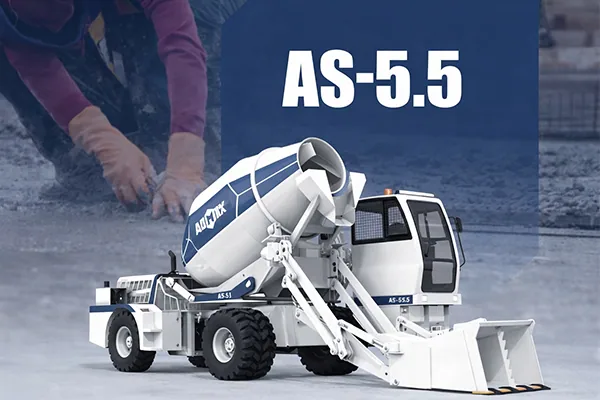

Discharge Capacity: 5500L
Concrete output: 22 m³/h
Engine Model: FAW XICHAI 6110 Turbo-Charged
Gear: 2 Forward 2 Back, Front Wheels Steering
Features Of Aimix Self-loading Concrete Mixer:
♦ Short mixing cycle, high mixing quality and high working efficiency.
♦ Pressure transducers or load cells for weighing, ensures the high quality of concrete.
♦ Conventional bucket or clamshell bucket& Skimmer for road or rail use.
♦ Customize your machine according to your needs.
♥ If you have a demand for self-loading concrete mixers or need other types concrete mixer, welcome to Contact us for detailed information and latest price.
Aimix Self Loading Concrete Mixer Using Situation:
In this combination, self loading concrete mixer is acting as a smaller mobile concrete batching plant, which is more cost effective & more flexible while using it. After our self loading concrete mixer finished concrete mixing, the produced concrete will be pumped by concrete trailer pump. This combination is suitable for middle & small concrete production project: such as house building, road building, bridge building, etc. This is one of our special design for our clients, if you need any customized service or want to get more details, please Contact us for details.
Aimix Self Loading Concrete Mixer Cases:
Aimix has exported 1000+ sets of self loading concrete mixers in worldwide, which include: The Philippines, Indonesia, Malaysia, Sri Lanka, Pakistan, Uganda, Kenya, Morrco, Russia, Uzbekistan, The United States, Canda, Fiji, etc. Here are some example cases:
Our Indonesia client is a businessman of selling precast panels on Kalimantan island. Because it’s too far from the city, it is difficult to buy concrete at the local market. He decided to mix concrete in their local work-site. He drove to our Surabaya warehouse in Indonesia to see spot goods. After learning details and test-driving our self loading concrete mixer, he paid for it. When he gets back to his work-site, this AS-3.5 self loading concrete mixer is delivered to his work-site sooner…Learn More
Aimix AS1.8 self loading concrete mixer was sent to Cavite city in March 2021. Our Cavite clients bought it for his road and housing project. After learning our clients requirment of concrete production & quality, we suggested him this 7.2 m³/h self loading concrete mixer. Because our clients was in hurry need for his construction project, we sent this AS1.8 self loading concrete mixer from Aimix local warehouse in Cavite. Learn More
Aimix ABT60C diesel engine concrete trailer pump and AS-4.0 self loading concrete mixer were bought by our Uzbekistan clients in June 2020. They had been taken into concrete production and pumping now. Our Uzi clients spoke highly of Aimix high quality and good after-sales service.Learn More
AS3.5 Self Loading Concrete Mixer Is Used For Production Of Precast Panel In Indonesia
AS3.5 Self Loading Concrete Mixer Was Transported From Indonesia Warehouse
AS-5.5 Self Loading Concrete Mixer Was Shipped To Congo (DRC)
Aimix AS3.5C Self Loading Concrete Mixer Was Ready To Deliver To Argentina
Aimix AS1.8 Self Loading Concrete Mixer Was Delivered To Cavite Philippines
2 Sets Of Aimix Self Loading Concrete Mixers Were Sent To Kazakhstan
Aimix Self Loading Concrete Pan Mixer Was Worked In Mozambique
Aimix AS-3.5C Self Loading Concrete Mixer In Malaysia
Aimix Concrete Trailer Pump & Self Loading Concrete Mixer In Uzbekistan
Technical Parameters Of Aimix Self-loading Concrete Mixer:
| AS-1.2/1.8/2.6 Self Loading Mixer | AS-3.5/4.0 Self Loading Concrete Mixer | AS-5.5/6.5 Self Loading Concrete Mixer |
|---|
| Equipment Model | AS-1.2 Self Loading Mixer Truck | AS-1.8 Self Loading Mixer Truck | AS-2.6 Self Loading Concrete Mixer truck |
| Discharge Capacity | 1.2 m³ | 1.8 m³ | 2.6 m³ |
| Engine Model | Yunnei 490 Turbo-Charged | Yuchai 4102 Turbo-Charged | Yuchai 4102 Turbo-Charged |
| Rated Power | 55 kw | 78 kw | 78 kw |
| Gear Box Model | ZL-265 Power Shift Gearbox | ZL-280 Power Shift Gearbox | ZL-280 Power Shift Transmission |
| Gear | 2 Forward 2 Back | 2 Forward 2 Back | 4 Forward 4 Back |
| Fuel Tank | 63 Liters | 75 Liters | 75 Liters |
| Total Hydraulic System Capacity | 63 Liters | 75 Liters | 75 Liters |
| Oil Tank | 16 Liters | 16 Liters | 16 Liters |
| Reducer | KY07-2-0 | HJ80-43 | HJ80-43 |
| Hydraulic Pump | CBFC 50/32 | CBGQ 2050/2032 | CBGQ 2050/2032 |
| Hydraulic Motor | BM5-125 | BM5-160 | BM5-160 |
| Water Tank | 400 L | 500 L | 500 L |
| Water Supply | Time Relay | Time Relay | Time Relay |
| Overall Dimensions(L*W*H) | 6400×2550×3300 | 7300×2650×3750 | 7860×2750×4100 |
| Wheelbase (mm) | 2300 | 2600 | 2800 |
| Curb Weight (Kg) | 4185 | 6500 | 6500 |
| Drive Form | Torque Converter | Torque Converter | Torque Converter |

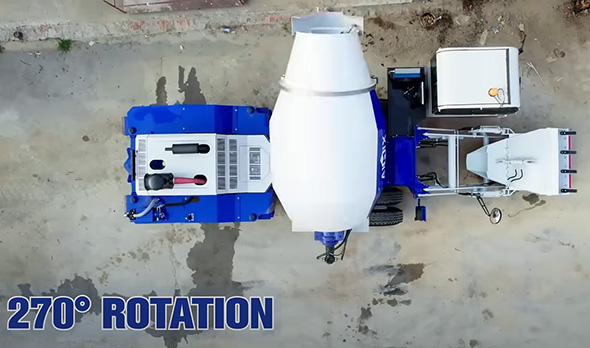

| Drum Rotate | 270º | 270º | |
| Max.Speed (Km/h) | 30 | 30 | |
| Maximum Grade | 30º | 30º | 30º |
| Maximum Turning Radius (mm) | 4700 | 5300 | 5300 |
| Minimum Ground Clearance (mm) | 280 | 380 | 380 |
| Equipment Model | AS-3.5 Type A Self Loading Mixer Truck | AS-4.0 Self Loading Mixer Truck |
| Discharge Capacity | 3.5 m³ | 4.0 m³ |
| Engine Model | YUCHAI 4105 Turbo-Charged | YCD4J22G |
| Rated Power | 85 kw | 85 kw |
| Gear Box Model | ZL-280 Power Shift Gearbox | ZL-280 Power Shift Gearbox |
| Gear | 2 Forward 2 Back,Front Wheels Steering | 2 Forward 2 Back,Front Wheels Steering |
| Fuel Tank | 75 L | 230 L |
| Total Hydraulic System Capacity | 75 Liters | 170 Liters |
| Oil Tank | 16 Liters | 16 Liters |
| Reducer | HJ80-43 | KY07-5-J |
| Hydraulic Pump | CBGQ 2040/2080 | Interpump |
| Hydraulic Motor | BM5-160 | HAA2FM56/61W-VTD527 |
| Water Tank | 620 L | 660 L |
| Water Supply | Time Relay | Time Relay |
| Overall Dimensions(L*W*H) | 7830×2680×4170 | 7640×2870×4750 |
| Wheelbase (mm) | 2900 | 2480 |
| Curb Weight (Kg) | 7500 | 9000 |
| Drive Form | Torque Converter | Torque Converter |
| Max.Speed (Km/h) | 30 | 35 |
| Maximum Gradeability | 30º | 30º |
| Maximum Turning Radius (mm) | 5300 | 4800 |
| Minimum Ground Clearance (mm) | 380 | 330 |

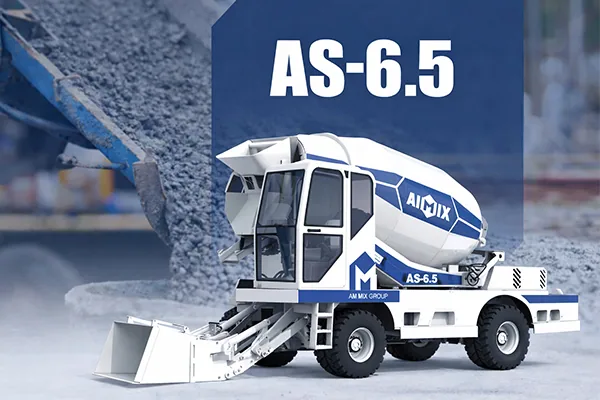

| Equipment Model | AS-5.5 Self Loading Mixer Truck | AS-6.5 cbm Self Loading Mixer Truck |
| Discharge Capacity | 5.5 m³ | 6.5 m³ |
| Engine Model | FAW XICHAI 6110 Turbo-Charged | Weichai deutz 6105 Turbo-Charged |
| Rated Power | 110 kw | 92 kw |
| Gear Box Model | ZL-315 Power Shift Gearbox | ZL-315 Power Shift Gearbox |
| Gear | 2 Forward 2 Back, Front Wheels Steering | 2 Forward 2 Back |
| Fuel Tank | 180 L | 370 L |
| Total Hydraulic System Capacity | 180 Liters | 278 Liters |
| Oil Tank | 16 Liters | 16 Liters |
| Reducer | HJ80-43 | KY07-5-J |
| Hydraulic Pump | CBGQ 2050/2032 | Interpump |
| Hydraulic Motor | USA SUNNY 56 | SUNNY63 |
| Water Tank | 860 L | 1465 L |
| Water Supply | Time Relay | Time Relay |
| Overall Dimensions(L*W*H) | 8450×3100×4580 | 8450×3050×4830 |
| Wheelbase (mm) | 3350 | 2850 |
| Curb Weight (Kg) | 11200 | 12520 |
| Drive Form | Torque Converter | Torque Converter |
| Drum Rotary | 270º | |
| Max.Speed (Km/h) | 42 | 40 |
| Maximum Gradeability | 30º | 30º |
| Maximum Turning Radius (mm) | 6200 | 4800 |
| Minimum Ground Clearance (mm) | 350 |
Note: Due to equipment upgrades, the parameters will be adjusted without notice.
FAQs of Aimix Self Loading Concrete Mixer:
Q: How to install Aimix self loading concrete mixer?
A: It’s easy to install. We provide instructions and videos for installation. Aimix engineers also can give online guidance. (our overseas branch offices can provide door-to-door service.)
Q: Can self-loading concrete mixers go on mountain roads?
A: It depends on the slope of the mountain. A low slope can be climbed.
Q: Can it produce concrete according to the formula? Can the production data be printed?

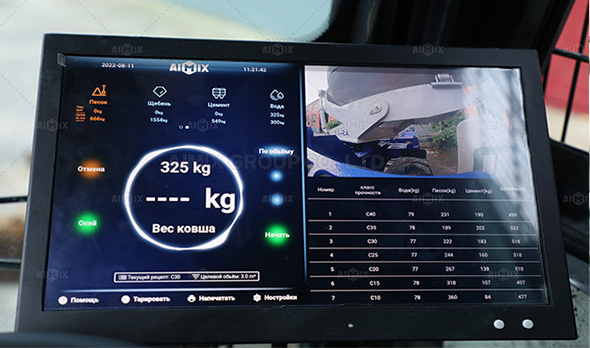

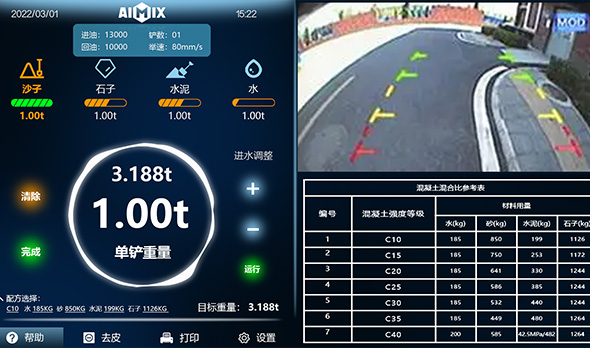

A: Aimix self-loading concrete mixer is equipped with a hydraulic weighing system. You can weigh materials according to your formula requirements. It is also equipped with a printer, the weight of materials can be printed.
Q: How many operators need while using one self-loading concrete mixer?
A: 1-3 persons to operate.
Q: How to clean self loading concrete mixer?
A: The tank needs to be cleaned each time before getting off work. It can be equipped with a high-pressure car washing pump. Or add two buckets of stones and half a tank of water to mix for 3-5 minutes and then pour it out.
Q: What is the difference between a concrete mixer truck and self loading concrete mixer?
A: Concrete mixer truck is mainly used for transport concrete. It has no charging function. Concrete mixer truck is mainly used in medium and large projects.
Self-loading concrete mixer can load raw materials and mix concrete by itself. It is mainly used for small and medium projects or for repair project.
……
If you have any other questions about our self loading concrete mixer, please feel free to consult us. We will give you professional technical support in time.
Self Grab Bucket Concrete Mixer Truck:
| AZDJ2000 Grab Bucket Mixer Truck | |
| Drum Capacity | Concrete output 2.0m³/batch |
| Mixing | Vertical shaft forced mixing, 0- 45rpm |
| loading | Grabbing bucket 150L/bucket |
| Production capacity | 8m³/hour |
| Walking speed | 0-40 km/hour |
| Discharging | Two discharge ports, rear & right |
| Max discharge height | 4m |
| Engine | CHANGCHAI HS400M 40HP 2200 rpm |
| Tank | Hydraulic oil tank 50L, water tank 100L |
| Transmission | Mechanical transmission, 4×4 |
| Water pump | Self-priming water pump, 25 T/hour |
| Brake | Hydraulic brake |
| Tires | 7.0-16 |
| Electric | 24 V |
| Size | 4.9×2×3m |
