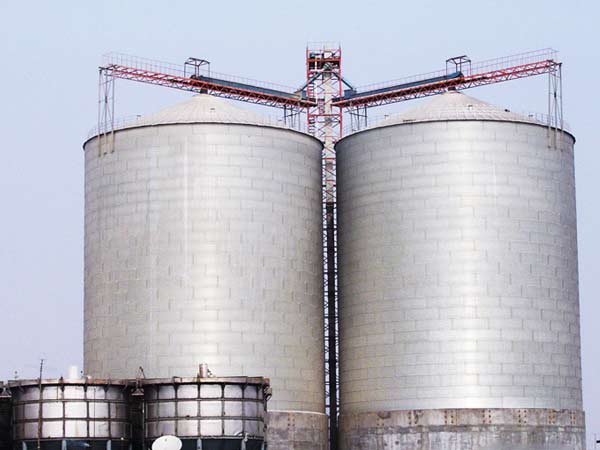

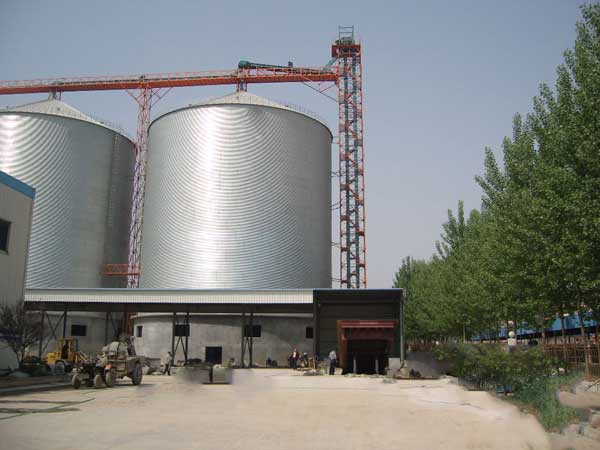

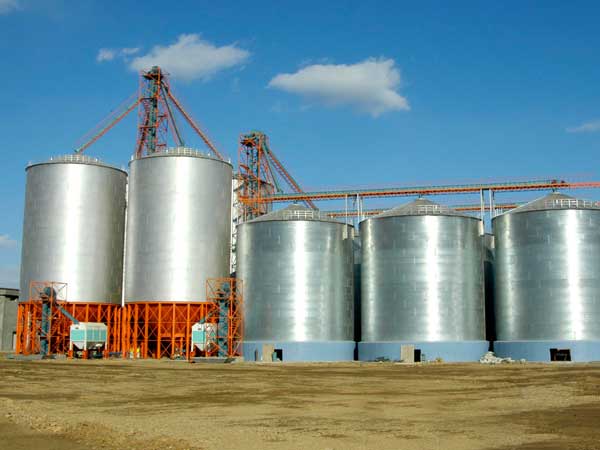

Grain silo, also named grain bin, grain storage silo, is a large grain storage container. Grain storage silo is used to store agriculture products for home appliance or large granary projects. Grain silo is widely used to store grains like rice, corn, wheat, soybean, barley, sorghum, beet seeds, peanut, rye seeds, flour, feed, minor cereals and and other bulk granular crops, etc.
Aimix grain silo has the function of moisture-proof, insects and rodents prevention and convenient in and out of grains. Aimix offers a wide range of steel silos for grain storage, providing complete storage and installation equipment solutions for customers from all over the world. We can also design and customize grain silos according to your own needs.
Types of Aimix Grain Silo:

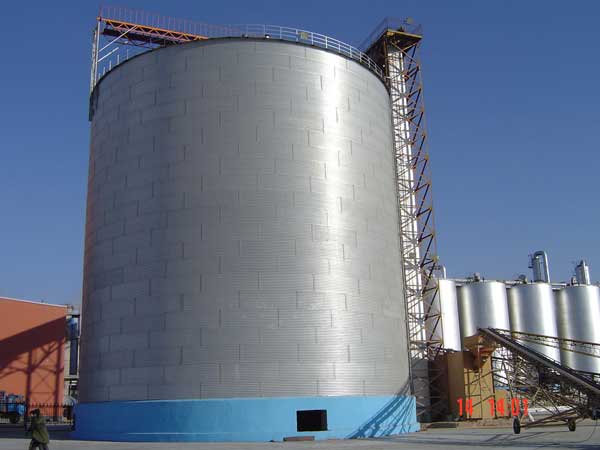

♦ Constructed with flat bottom surface by advanced technology
♦ Withstand all types of material storage
♦ Provide necessary accessories at the same time
♦ A sweep auger is fixed inside the flat concrete bottom
♦ Easy discharge outlets with valves

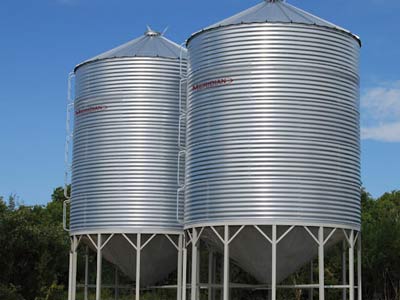

Hopper bottom steel silo has the features of Gravity outlet, great auto-cleaning systems, no remains and etc. The capacity of storing volume is middle size, and it is widely used in grain, seed, flour, cement industry. Aimix cone bottom steel silo is of tough structure and high Fall-to-ground strength. The Slope grade of the cone bottom can be 40°, 45°, 60°. The 60°cone bottom steel silo is especially suitable for high viscosity grain or powder material.
Technical Parameters of Aimix Grain Silo:
| Specification of Flat Bottom Steel Silo: | Specification of Hopper Bottom Steel Silo: |
|---|
| Model | Capacity | Diameter(m) | Total Height(m) | Volume(m3) Density:0.75ton/m3 |
| TCK10014 | 1000 ton | 10.084 | 18.69 | 1335 |
| TCK10015 | 1500 ton | 11.918 | 20.34 | 2009 |
| TCK13715 | 2000 ton | 13.75 | 20.87 | 2701 |
| TCK14616 | 2500 ton | 14.668 | 22.25 | 3278 |
| TCK15518 | 3000 ton | 15.584 | 24.78 | 4145 |
| TCK18321 | 5000 ton | 18.334 | 28.6 | 6693 |
| TCK22921 | 8000 ton | 22.918 | 29.85 | 10640 |
| TCK26521 | 10000 ton | 26.585 | 30.85 | 14513 |
| Model | Capacity | Diameter(m) | Total Height(m) | Volume(m3) Density:0.75ton/m3 |
| TCZK03605 | 50 ton | 3.667 | 9.56 | 69 |
| TCZK04506 | 100 ton | 4.584 | 11.41 | 131 |
| TCZK05506 | 150 ton | 5.5 | 12.13 | 195 |
| TCZK05509 | 200 ton | 5.5 | 15.49 | 275 |
| TCZK06410 | 300 ton | 6.417 | 17.33 | 418 |
| TCZK07313 | 500 ton | 7.334 | 21.42 | 699 |
| TCZK10013 | 1000 ton | 10.084 | 23.61 | 1379 |
| TCZK12811 | 1500 ton | 12.834 | 23.51 | 2039 |
If you are interest in Aimix grain silo, please Contact us directly, we also provide customized service.
Features of Aimix Grain silo:
• Greater storage capacity according to your requirement
• Cost-effective because of the higher storage capacity.
• Great service & low maintenance cost
• Quick installation & easy transportation
• High quality and extremely strong materials of the silos.
• It is easier and more effective to do aeration
