Concrete Trailer Pump

Operates around the clock, stable performance, with a failure rate
lower than 1%.
The pumping pressure is sufficient to meet the usage requirements
of high-rise building construction projects.



30-90m3/h
aimix concrete trailer pump banner

Concrete Trailer Pump For Sale

Concrete Trailer Pump (also called stationary concrete pump or concrete line pump), is a highly efficient concrete conveying device widely used in construction sites. It utilizes a hydraulic system to transport concrete to designated locations with precision and reliability. AIMIX concrete pump most suitable for the houses and commercial buildings under 30 floors,small bridges, water conservancy, electric power, communication and other sites. We provide both diesel and electric options.

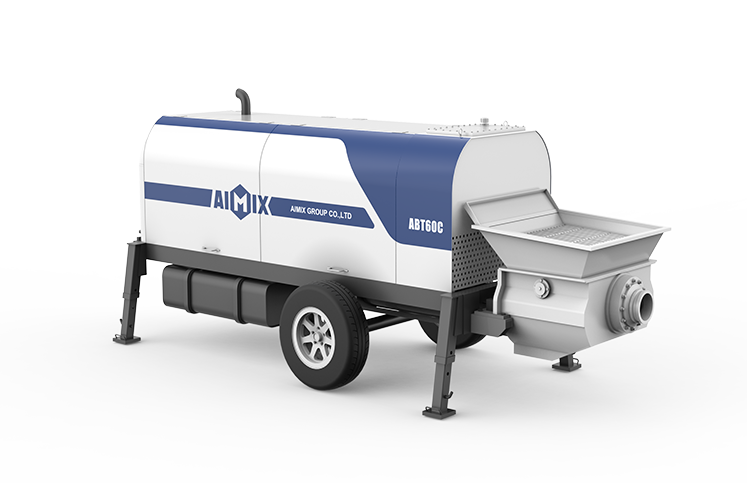

Diesel Concrete Trailer Pump

ABT30CABT40CABT60CABT80CABT90C

Power: Diesel/Electric
Capacity(m3/h): 30m3/h-90m3/h
Concrete Puming Distance: 280m(Vertical)/1200m(Horizontal)

Suitable for engineering projects with existing ready-mixed concrete, it can pump horizontally up to 1200 meters and vertically up to 280 meters (approximately 35-50 story buildings).
Remote Areas: In remote areas without a stable power supply, diesel trailer pumps are ideal as they do not rely on external power sources.
Get A Quote

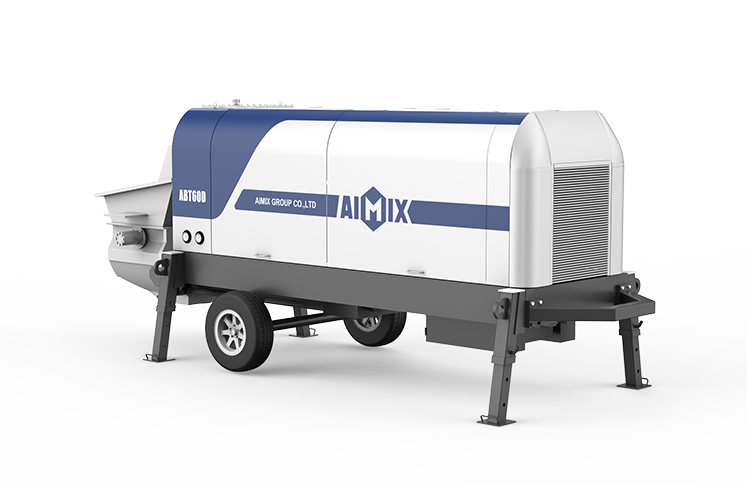

Electric Concrete Trailer Pump

ABT30DABT40DABT60DABT80DABT90D

Power: Electric
Capacity(m3/h): 30m3/h-90m3/h
Concrete Puming Distance: 280m(Vertical)/1200m(Horizontal)

Suitable for engineering projects with existing ready-mixed concrete, it can pump horizontally up to 1200 meters and vertically up to 280 meters (approximately 35-50 story buildings).
Applied in urban environments where power supply is stable and easily accessible, electric trailer pumps are preferred due to their low noise and zero emissions.
Get A Quote

Application Fields

AIMIX concrete pump is ideal for commercial housing construction, road and bridge construction projects in big cities. It is also suitable for floor heating, spraying concrete project and spraying refractory material, and is more suitable for urban and rural residential buildings of 5-10 floors and new rural construction.

Rural housing construction

Urban building construction

Bridge and canal construction

Road construction: urban and rural road, highway tunnels, etc.

Concrete Mixing & Pumping Solutions

Concrete pump can be combined with concrete mixer, concrete mixer truck, self-loading mixer truck, and concrete batching plant to improve work efficiency.

Globally Project Application

As a construction equipment manufacturer with more than 40 years of experience, our equipment has been sold to more than 100 countries and regions around the world. We provide concrete mixing and pumping solutions to many customers around the world to help customers’ construction projects.

ABT30C Concrete Tralier Pump In Indonesia

ABT40C Concrete Tralier Pump In Myanmar

concrete trailer pump dominica

ABT30C Concrete Tralier Pump In Dominica

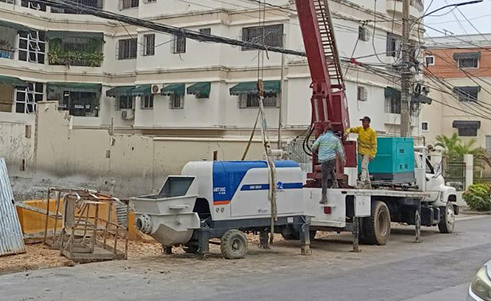

ABT30C trailer pump in Dominica

ABT30C Concrete Trailer Pump In Dominica

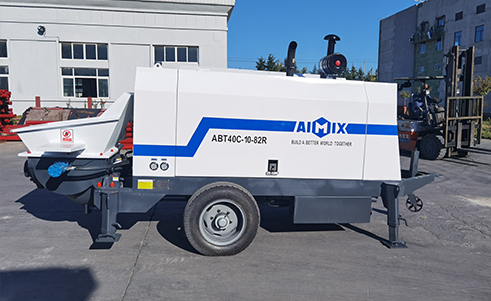

ABT40C concrete trailer pump Indonesia

ABJZ30C Concrete Mixer Pump In Indonesia

ABJ40C Concrete Mixer Pump In Fiji

ABJZ40C Concrete Mixer Pump In Indonesia

ABT40C Concrete Tralier Pump In The Philippines

ABT40C Concrete Tralier Pump In East Timor

ABT40C Concrete Tralier Pump In Fiji

Parameters

Disel Concrete Trailer Pump
Electric Concrete Trailer Pump
Disel Concrete Mixer Pump
Electric Concrete Mixer Pump
Items Units ABT40C ABT60C ABT80C
whole performance of machine Max. theo. concrete output(L./H) M3/h 40/26 67/45 84/45
Max.concrete pumping pressure(H./L.) MPa 10/8 13/7 16/7
Distribution valve type S Valve S Valve S Valve
Concrete cylinder diameter x stroke mm Φ180X1300 Φ200X1650 Φ200X1800
Hopper capacity x feeding height L/mm 400/1250 800/1400 800/1400
Outlet diameter mm Φ150 Φ180 Φ180
Power system Diesel engineering power KW 82 129 176
Rotate speed r/min 2200 2200 2200
Hydraulic system Circuit type Open circuit Open circuit Open circuit
Pumping system pressure MPa 32 32 32
Mixing system pressure MPa 10 10 10
Capacity of oil tank L 370 560 560
Other parameters Max. Theoretical Vertical/Horizontal Conveying Distance m 120/500 180/1000 260/1200
Max. aggregate diameter mm Slick/scree:40 Slick/scree:40 Slick/scree:40
Inside diameter of delivering pipe mm Φ125 Φ125 Φ125
Dimensions: length x width x height mm 5000x1850x1700 5800x2000x1750 6300x2100x2350
Total weight kg 4500 6500 6900
Items Units ABT40D ABT60D ABT80D
whole performance of machine Max. theo. concrete output(L./H) M3/h 40/26 60/36 84/46
Max.concrete pumping pressure(H./L.) MPa 10/8 13/7 16/7
Distribution valve type S Valve S Valve S Valve
Concrete cylinder diameter x stroke mm Φ180X1300 Φ200X1650 Φ200X1800
Hopper capacity x feeding height L/mm 400/1250 800/1400 800/1400
Outlet diameter mm Φ150 Φ180 Φ180
Power system Electrical engineering power KW 45 90 110
Rotate speed rpm 1480 1480 1480
Hydraulic system Circuit type Open circuit Open circuit Open circuit
Pumping system pressure MPa 28 28 32
Mixing system pressure MPa 10 10 10
Capacity of oil tank L 370 560 560
Other parameters Max. Theoretical Vertical/Horizontal Conveying Distance m 120/500 160/800 200/1000
Max. aggregate diameter mm Slick/scree:40 Slick/scree:40 Slick/scree:40
Inside diameter of delivering pipe mm Φ125 Φ125 Φ125
Dimensions: length x width x height mm 4500x1750x1600 5500x2000x1750 5800x2100x2350
Total weight kg 3200 6000 6300
Items Units ABJZ30C ABJZ40C
Whole performance of machine Max. theo. concrete output m3/h 30 40
Max.concrete pumping pressure MPa 6 10
Distribution valve type S Valve S Valve
Concrete cylinder diameter×stroke mm Ф200×500 Ф180×1000
Hopper capacity L 400 400
Outlet diameter mm Ф150 Ф150
Power system Diesel engine model Yuchai Weichai
Rotate speed r/min 2200 2200
Hydraulic system Circuit type Open circuit Open circuit
Pumping system pressure MPa 28 31.5
Mixing system pressure MPa 6-8 6-8
Capacity of oil tank L 350 350
Other parameters Max. Theoretical Vertical/Horizontal Conveying Distance m 120/400 150/600
Max. aggregate diameter mm Scree: 40 Scree: 40
Inside diameter of delivering pipe mm Ф125 Ф125
Dimensions: length x width x height mm 3500x2200x2700 5800x2200x2600
Total weight kg 3800 6800
Items Units ABJZ30D ABJZ40D
whole performance of machine Max. theo. concrete output(L./H) M3/h 30 40
Max.concrete pumping pressure(H./L.) MPa 10 10
Distribution valve type S Valve S Valve
Concrete cylinder diameter x stroke mm Ф140X1000 Ф180X1000
Hopper capacity L 400 400
Outlet diameter mm Ф150 Ф150
Power system Electrical engineering power KW 37 45
Rotate speed r/min 1480 1480
Hydraulic system Circuit type Open circuit Open circuit
Pumping system pressure MPa 26 26
Mixing system pressure MPa 6-8 6-8
Capacity of oil tank L 260 370
Other parameters Max. Theoretical Vertical/Horizontal Conveying Distance m 120/300 120/500
Max. aggregate diameter mm Slick/scree:10/20 Slick/scree:40/50
Inside diameter of delivering pipe mm Ф100 Ф125
Dimensions: length x width x height mm 4500x1750x1600 4200x2300x3150
Total weight kg 3000 4500

FAQs

For the diesel type or electric type,Which is better?
If electricity is not very convenient in your construction site, we recommended that you use diesel engine type, it will not limited by the electric.Also diesel costs less, and diesel engines have more power than electric type.
Concrete trailer pump and concrete mixer pump, which one should I choose?
Concrete trailer pump most suitable for the houses and commercial buildings under 30 floors,small bridges, water conservancy, electric power, communication and other sites. While concrete mixer pump is suitable for floor heating, shotcrete engineering and refractory material spraying, with small volume, especially suitable for 5-10 story building construction in rural towns and new rural areas.
Our maximum diameter of aggregate is 40mm. Which model of do you recommend?
According to the largest aggregate diameter you provide,we recommended the ABJZ40 diesel Concrete mixer pump.
Factors we need to consider when buy a concrete mixer pump
Pumping capacity, that is, how many cubic meters of concrete are transported per hour;
Maximum aggregate size;
Power type, which requires you to determine whether you should choose a diesel engine or an electric motor according to the construction situation;
Pumping distances, including vertical pumping distances and horizontal distances;
Concrete slump. Concrete slump greater than 100 more suitable for pumping.

Related Concrete Equipment

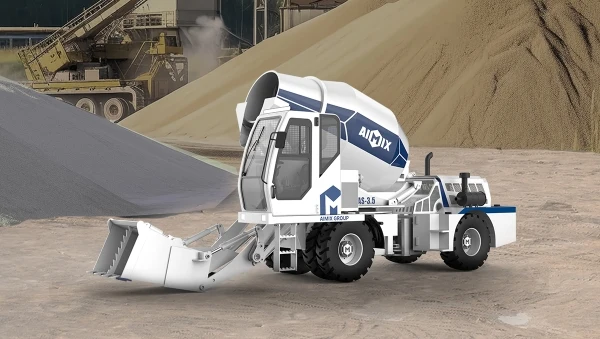

Self Loading Concrete Mixer

Auto load, mix, discharge; 1.8m³/drum-6.5m³/drum.

Learn More  →

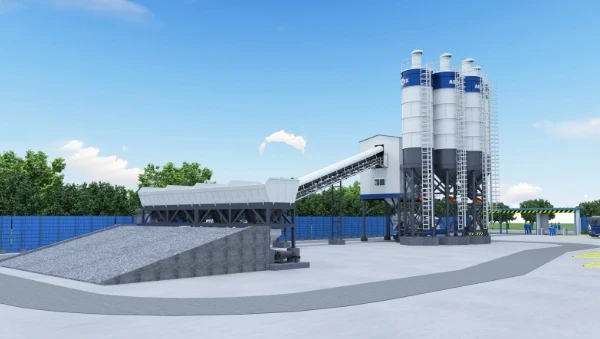

Concrete Batching Plant
