Concrete Mixer Truck

Concrete Mixer Truck

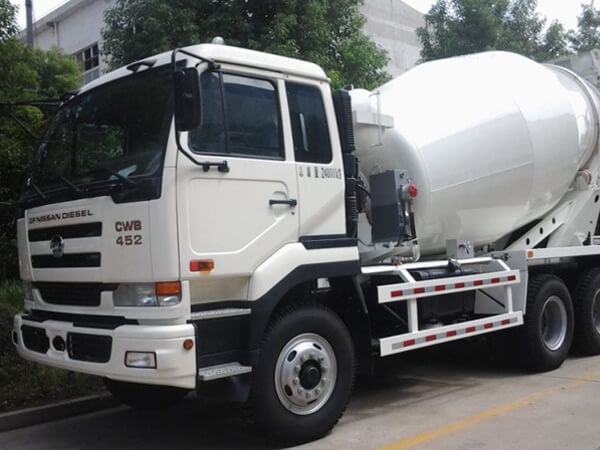

Concrete Mixer Truck (cement mixer truck, concrete agitator truck) is a device that homogeneously combines concrete, aggregate such as sand or gravel, and water to form concrete – a powered device that mixes concrete with water and aggregate, such as sand or pea gravel, to make concrete. When the truck moved, the mixer tank work to mix the concrete. Aimix concrete mixer truck uses the Italy concrete pump, German reducer and Japan KYD motors. Our commercial concrete mixer truck is used for mixing and transporting large volumes of concrete between 3 – 16 m3 for use on a building site.

Concrete-Mixer-Truck02
Concrete Mixer Truck

Productivity: 3-14m³/h
Chassis Model: HOWO, Shanxi auto, Foton, customized
Reducer: Germany ZF, Italy PMP, Italy TOP
Drive type:4×2, 6×2, 6×4, 8×4
Tank material: Q345 Steel

Technical Parameters Of Aimix Concrete Mixer Truck:

Item CLCMT-14 CLCMT-12 CLCMT-10 CLCMT-9 CLCMT-8 CLCMT-6 CLCMT-4 CLCMT-3
Volume (m3) 14 12 10 9 8 6 4 3
Chassis model Dongfeng, HOWO(Sinotruk), Shanxi Auto, North Pennines, Isuzu, Foton, Delong
Feeding speed M3/min≥ 3
Unloading speed M3/min≥ 2
Discharge reside rate %< 0.5
Water supply model Air pressure water supply
Delivery time Within 15 work days after receiving the payment
Warranty 12 months, from the date of supply.
Remarks Hydraulic Pump& motor: GMP (Italy)
Decelerator: GMP (Italy)

If you need other types or capacity concrete mixer truck, Our Professional Engineers can design according to your demand and Provide installation, maintenance and other services.Please click Contact us

Features Of Aimix Concrete Mixing Transport Trucks :

1. LONG SERVICE LIFE
Wuhan steel, Baoshan steel material, different thickness for different parts, wear strips added on the blades, making the service life 1.5 times that of most other similar machines.

2. WELL-EQUIPPED
CNC blanking equipment, automatic welding system, fixtures, automatic robot welding production line (on trial), all these ensure the quality of concrete.

3. SPECIAL STRUCTURE

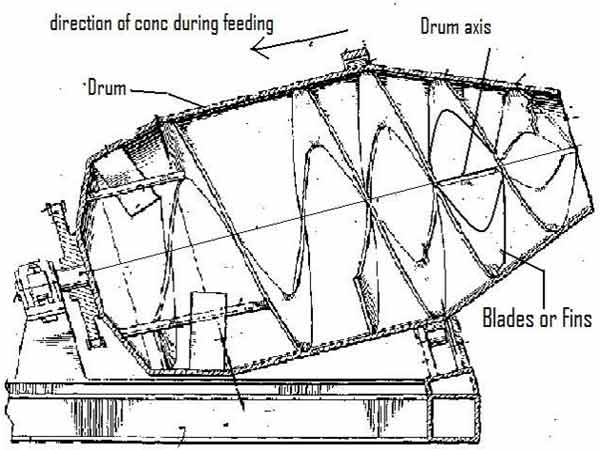

The blades are made by special cold-forming pressing molder which can ensure the speed and quality of the concrete output.
4. BUS BAKING VARNISH
Fifteen thousand square meters workshop for painting, 16 processes baking system, polyurethane finish coat, all these make the tank surface stays bright for very long time.

5. HIGH-LEVEL CONFIGURATION
Aimix series concrete mixer truck adopts imported hydraulic system from Germany, Italy, America.

6. EXCELLENT AFTER-SALE SERVICE
Brand-new pump, motor, reducer can be provided for free if they break down in one year. Our engineer will visit customers regularly to help solve technical problems.

Complete Equipment You May Get Interested:

underground concrete mixer truck

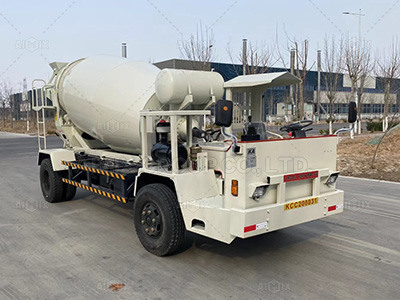

Underground Concrete Mixer Truck
